Aluminum Concentric Cable 03
Concentric Cable
Aluminum Alloy
Round Cable
Power Transmission
Concentric Cable, Aluminum Concentric Cable, 3*6AWG Concentric Cable, 2*6+1*6 Concentric Cable, 3*4AWG, 3*2AWG,3*8AWG. Aluminum Alloy Series 8000 Concentric Cable. Round Concentric Cable
Implementation Standards
- ASTM-B
- ASTM-D
- UL
Product Introduction
Application
The 600/1000V round aluminum concentric cable is commonly used for service entrance to power transmission.
Standard
- ASTM-B
- ASTM-D
- UL

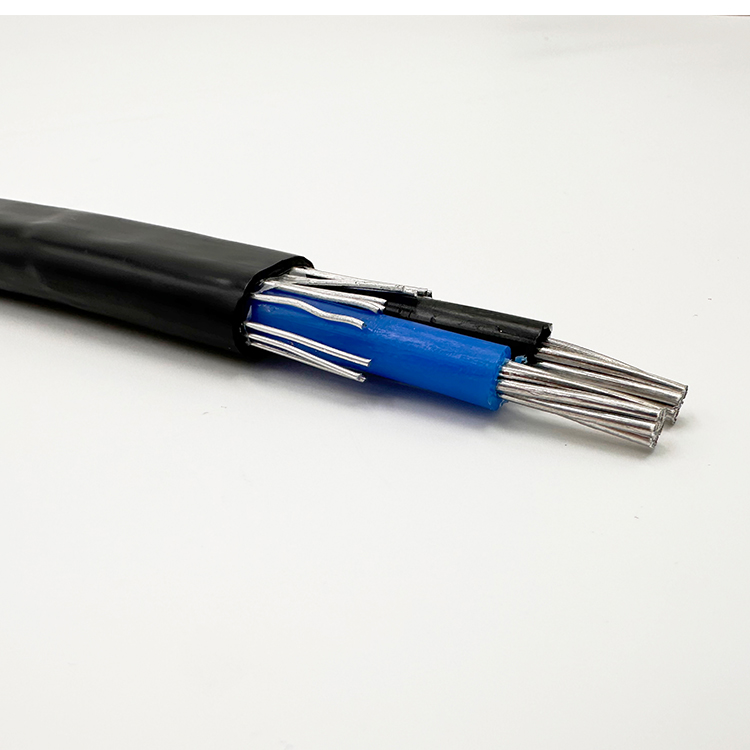

Construction
- Conductor: 8000 Series aluminum alloy
- Insulation: XLPE
- Cable Inner Sheath: PVC
- Concentric Conductor Layer: 8000 Series aluminum alloy
- Cable Tape: Non-absorbent material or OEM
- Cable Outer Sheath: XLPE/PVC/PE
Advantages
- Factory direct sale
- Abundant experiences, good quality, and cheap price
- Free sample
Technical Specifications
Cable Specifications
| Cable Type | Conductor (mm) | Insulation Thickness (mm) | Concentric Conductor (mm) | Outer Sheath Thickness (mm) | O.D of the cable (mm) |
| 3X8AWG | 7/1.23 | 1.14 | 65/0.405 | 1.14 | 11.3x17.3 |
| 3X6AWG | 7/1.55 | 1.14 | 65/0.511 | 1.14 | 13.2x20.0 |
| 3X4AWG | 7/1.96 | 1.14 | 65/0.643 | 1.52 | 14.7x22.9 |
| 3X2AWG | 7/2.47 | 1.14 | 65/0.823 | 1.52 | 16.6x26.3 |
Application Fields
Service entrance to power transmission
Packaging & Shipping
All cables will be packaged in different materials based on their outer diameter and net weight, and can be customized according to requirements
