ACSR Conductor
Bare conductor ACSR have such good characteristics as simple structure, convenient installation and maintenance, low cost large transmission capacity.
Certification Standards
Implementation Standards
- ASTM B 230
- ASTM B 231
- TS IEC 1089
- DIN48201
- BS 215
Product Introduction
PRODUCT APPLICATION
Aluminum Conductors and Steel Reinforced (ACSR) are used as overhead power lines, transmission lines, and distribution lines. As the name implies, ACSR is a concentrically stranded conductor composed of one or more layers of hard-drawn EC-grade Aluminum Wires over a high-strength coated steel core. The core may be single wire or stranded, depending on the size.
THE STRUCTURE OF ACSR
The structure of ACSR cable is one of the very simple ones among many cables. ACSR power cables are concentrically stranded conductors with one or more layers of hard-drawn 1350-H16 aluminum wire on a galvanized steel wire core. Depending on the size, the core can be single or stranded. The steel wire can be A or B-grade galvanized as a corrosion protection treatment.
STANDARD
ASTM — B 230, ASTM — B 231, TS IEC 1089, DIN48201, BS 215.
ADVANTAGES OF ACSR CONDUCTORS
- The simple structure is flat
- High transmission capacity
- Outstanding tensile strength
- Long service life
- High flexibility
The current ratings of ACSR conductors are generally available in low and medium voltage and high voltage.
HOW TO CHOOSE AN ACSR CONDUCTOR
ACSR is an abbreviation for Aluminum Conductor Steel Rebar. There are many types of ACSR conductors in common use. Different ACSR conductor sizes have different numbers of aluminum conductors, steel strands, overall area, current ratings, and short circuit ratings.
SERVICES
SiTong Cable cable suppliers have several quality certifications. ISO 9000, ISO 9001, ISO14000, ISO14001, ISO18000, CE, IEC, BS, NFC, ASTM, DIN, etc.
PACKAGING
The packaging of SiTong Cable cables is provided in wooden rolls, corrugated cartons, and reels. The cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture.
Technical Specifications
ACSR Conductor Specifications
| Code name | Nominal aluminum area (mm²) | Al. No. | Al. Dia. (mm) | St. No. | St. Dia (mm) | Total sectional area (mm²) | Overall Diameter (mm) |
|---|---|---|---|---|---|---|---|
| Mole | 10 | 6 | 1.50 | 1 | 1.50 | 12.39 | 4.50 |
| Squirrel | 20 | 6 | 2.11 | 1 | 2.11 | 24.43 | 6.33 |
| Gopher | 25 | 6 | 2.36 | 1 | 2.36 | 30.62 | 7.08 |
| Weasel | 30 | 6 | 2.59 | 1 | 2.59 | 36.88 | 7.77 |
| Fox | 35 | 6 | 2.79 | 1 | 2.79 | 42.77 | 8.37 |
| Ferret | 40 | 6 | 3.00 | 1 | 3.00 | 49.48 | 9.00 |
| Rabbit | 50 | 6 | 3.35 | 1 | 3.35 | 61.70 | 10.05 |
| Mink | 60 | 6 | 3.66 | 1 | 3.66 | 73.71 | 10.98 |
| Skunk | 60 | 12 | 2.59 | 7 | 2.59 | 100.30 | 12.95 |
| Beaver | 70 | 6 | 3.99 | 1 | 3.99 | 87.29 | 11.97 |
| Horse | 70 | 12 | 2.79 | 7 | 2.79 | 116.20 | 13.95 |
| Racoon | 75 | 6 | 4.10 | 1 | 4.10 | 92.40 | 12.30 |
| Otter | 80 | 6 | 4.22 | 1 | 4.22 | 97.86 | 13.98 |
| Cat | 90 | 6 | 4.50 | 1 | 4.50 | 111.30 | 15.90 |
| Hare | 100 | 6 | 4.72 | 1 | 4.72 | 122.50 | 17.50 |
| Dog | 100 | 6 | 4.72 | 7 | 1.57 | 118.50 | 14.15 |
| Hyena | 100 | 7 | 4.39 | 7 | 1.93 | 126.20 | 14.57 |
| Leopard | 125 | 8 | 5.28 | 7 | 1.75 | 148.10 | 15.81 |
| Coyote | 125 | 26 | 2.54 | 7 | 1.91 | 152.20 | 15.89 |
| Congar | 125 | 18 | 3.05 | 1 | 3.05 | 137.50 | 15.25 |
| Tiger | 125 | 30 | 2.36 | 7 | 2.36 | 161.70 | 16.52 |
| Dingo | 150 | 18 | 3.35 | 1 | 3.35 | 167.50 | 16.75 |
| Wolf | 150 | 30 | 2.59 | 7 | 2.59 | 194.90 | 18.13 |
| Caracal | 175 | 18 | 3.61 | 1 | 3.61 | 194.50 | 18.05 |
| Lynx | 175 | 30 | 2.79 | 7 | 2.79 | 326.20 | 19.53 |
| Jaguar | 200 | 18 | 3.86 | 1 | 3.86 | 222.30 | 19.30 |
| Panther | 200 | 30 | 3.00 | 7 | 3.00 | 261.50 | 21.00 |
| Lion | 225 | 30 | 3.18 | 7 | 3.18 | 294.20 | 22.26 |
| Bear | 250 | 30 | 3.35 | 7 | 3.35 | 325.60 | 23.45 |
| Goat | 300 | 30 | 3.71 | 7 | 3.71 | 400.00 | 25.97 |
| Sheep | 350 | 30 | 3.99 | 7 | 3.99 | 461.40 | 27.93 |
| Antilope | 350 | 54 | 2.97 | 7 | 2.97 | 421.50 | 26.73 |
| Bizon | 350 | 54 | 3.00 | 7 | 3.00 | 431.30 | 27.00 |
| Deer | 400 | 30 | 4.27 | 7 | 4.27 | 529.50 | 28.89 |
| Zebra | 400 | 54 | 3.18 | 7 | 3.18 | 484.50 | 28.62 |
| ELK | 450 | 30 | 4.50 | 7 | 4.50 | 588.30 | 31.50 |
| Camel | 450 | 54 | 3.35 | 7 | 3.35 | 536.80 | 30.15 |
| Moose | 500 | 54 | 3.53 | 7 | 3.53 | 597.20 | 31.77 |
| Finch | 500 | 54 | 3.65 | 19 | 2.29 | 642.90 | 33.35 |
Application Fields
Overhead power lines
Transmission lines
Distribution lines

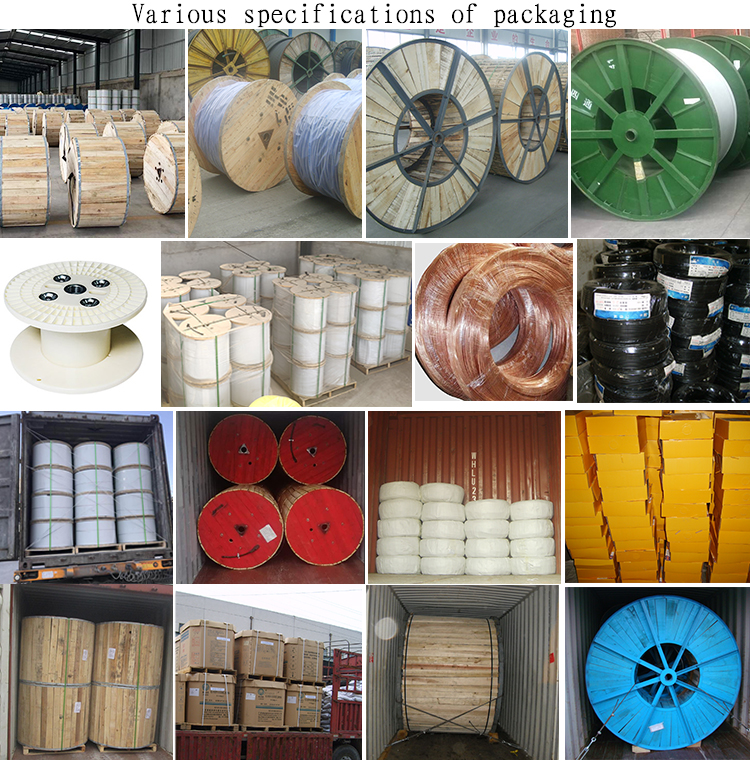

Packaging & Shipping
All cables will be packaged in different materials based on their outer diameter and net weight, and can be customized according to requirements
