Aluminium Conductor ABC Cable
Aluminium conductor XLPE insulation ABC cable for electrical overhead line.
Implementation Standards
- IEC 60502
- AS/NZS 3599-1
Product Introduction
Application
Three XLPE insulated screened cores are bundled around the galvanized steel wires in a right-hand lay. Primarily used for overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 600V phase-to-phase or less and at conductor temperatures not to exceed 75℃ for polyethylene insulated conductors or 90℃ for crosslinked polyethylene(XLPE) insulated conductors.
Standard
Basic design to IEC 60502 / AS/NZS 3599-1 standard
Construction Parameters
- Rated Voltage: 6.35/11kV
- Phase Conductor: Circular compacted stranded H68 aluminum to BS2627.
- Conductor Screen: Extruded semi-conductive layer.
- Insulation: XLPE.
- Insulation Screen: Extruded semi-conductive layer.
- Metallic Screen(optional): Copper tape screen.
- Separator: Semi-conductive swellable tape.
- Outer Sheath: HDPE.
- Support Conductor: Galvanized steel wires.
- Assembly: Three XLPE insulated screened cores are bundled around the galvanized steel wires in a right-hand lay.
Technical Specifications
Phase Conductor and Messenger Suspension Unit Specifications
| NO. Cores X Nominal Cross Section | Phase Conductor | Messenger Suspension Unit | Breaking Load | ||
| Stranding | Nominal Sectional Area | Stranding | Nominal Sectional Area | KN | |
| No.×mm² | No.×mm | mm² | No.×mm | mm² | KN |
| 3X50 + 1X25 | 19/1.78 | 50 | 7/3.0 | 50 | 60 |
| 3X70 + 1X50 | 19/2.14 | 70 | 7/3.15 | 50 | 62 |
| 3X95 + 1X50 | 19/2.52 | 95 | 7/3.0 | 50 | 60 |
| 3X185 + 1X120 | 37/2.52 | 185 | 7/4.67 | 120 | 150 |
| 3X150 + 1X50 | 37/2.25 | 150 | 7/3.15 | 50 | 62 |
| 3X240 + 1X50 | 61/2.25 | 240 | 7/3.15 | 50 | 62 |
Application Fields
Street lighting
Outdoor lighting
Temporary service for construction

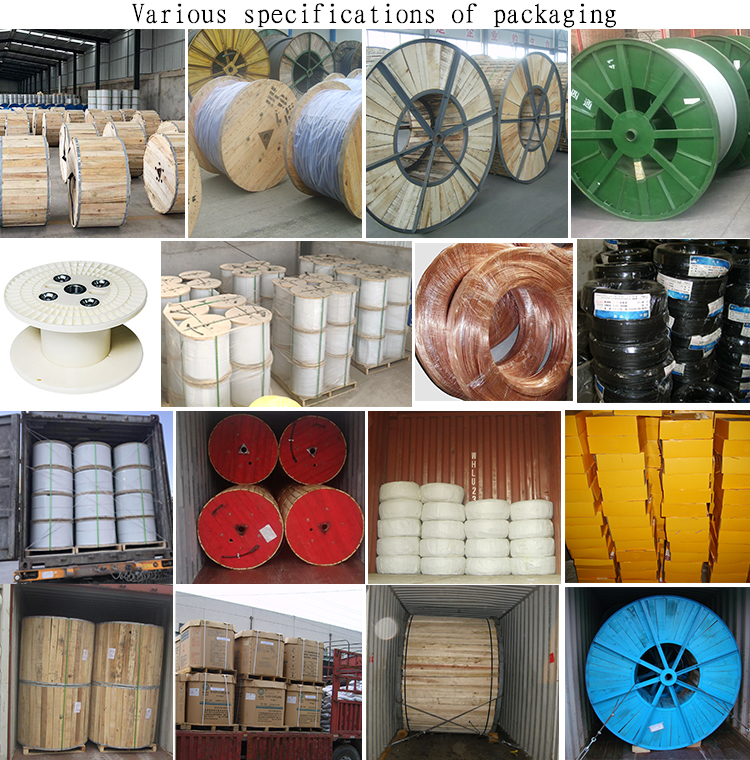

Packaging & Shipping
All cables will be packaged in different materials based on their outer diameter and net weight, and can be customized according to requirements
