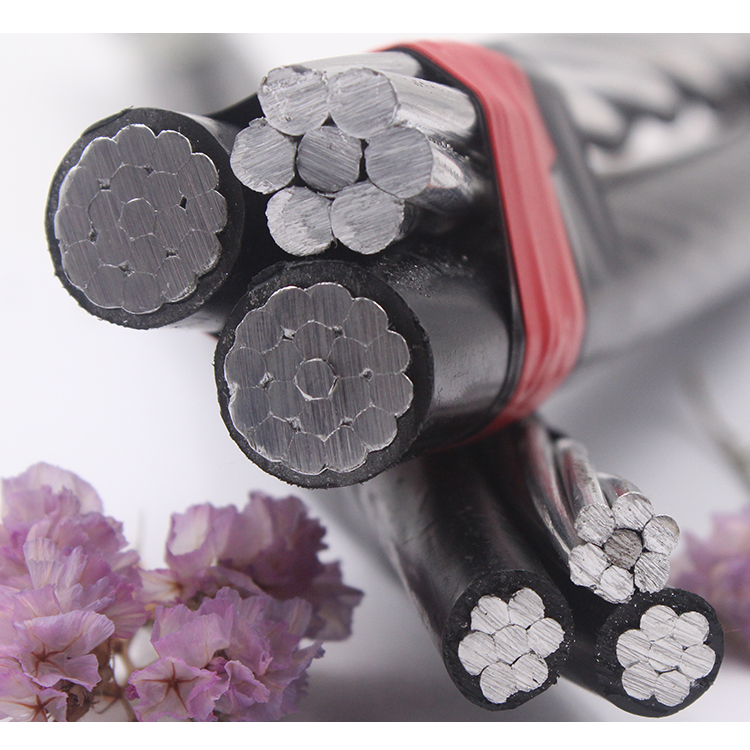

Triplex Service Drop wire abc cable

Detail Description or Construction

Conductor
Concentric strand or compressed 1350-H19 conductor. Concentric strand AAC, ACSR or AAAC
alloy neutral messenger
Insulation
Polyethylene or Cross-Linked Polyethylene insulation (XLPE)

Application

To supply power from the utility’s lines to the consumer’s servicehead.
Standards / Testing
Specifications
 B-230 Aluminum Wire, 1350-H19
for Electrical Purposes.
 B-231 Aluminum Conductors, Concentric-Lay-Stranded.
 B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
 B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
 B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
 Triplex Service Drop cable meets or exceeds all aplicable requierements of ANSI/ICEA
S-76-474.

Marking

CONDUCTOR TYPE AND SIZE – 600 V - INSULATION TYPE.
Installation
For service at 600 volts or less (phase to phase) at a maximum conductor temperature of 75º
C for
Polyethylene insulation or 90º
C for Cross-Linked (XLPE) insulation.
